2000W Crystalline Solar Power Supply System

It is widely used for providing the power supply to lamps, TV, Fan, Electric Kettle, Cooking device and other small devices (the power is no more than 2000W) at home, fishboats, barracks, Sentry boxes,outdoor activities, etc. Customized specification and style are available.

2000W Crystalline Solar Power Supply System


Products advantages


[Product Composition]:

The Standard : Solar Panels + Power Box + Cable Connection

The Options: LED Lights + LCD TV + Electric Kettle

[Descriptions & Advantages]:
  Two types of output: a USB charging output interface and 2 universal AC output .
  Simple, convenient to carry, easy to operate,etc.
  Integral panel, small volume and best working condition.
  The controller of our own research and development is designed for our special solar power box
  Anti-overcharger, anti-overdischarge, anti-overload and short-circuit resistance.
  Best light angle and ajustable brackets improve the power production.
  The frame of Power box is coated with special rustproof and anti-corrosion multiprocessing to ensure the longer lifespan.
 To facilitate carrying,the batteries can be detachable for using in different occasions.


[Power plan]:

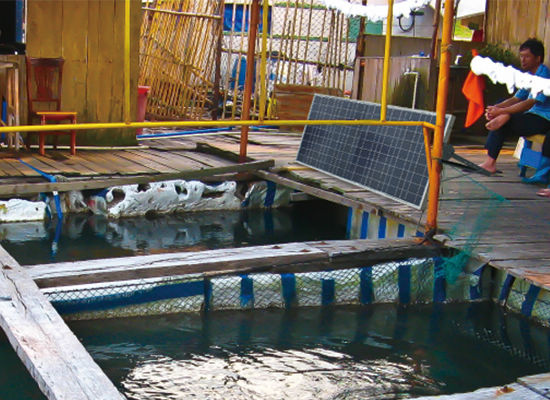

 To the raft, for example, the average daily electricity consumption plan is as follows:
  (TV 30W * 8h) + (light 5W * 3 * 6h) + (Fan 40W * 5h)+(kettle 800W*0.8h)= 1170Wh


Technical datas

  • Specifications of Solar Panel
  • Pmax:290W (145W*2)
  • Vmp:37.4V
  • Imp:7.76A
  • Voc:45.2V
  • Folded Size:1486mm*680mm*37mm
  • Weight:27Kg (13.5 Kg*2)
  • Specifications of Other:
  • AC Output:220V/50Hz,2000W(Maximum)
  • DC Output:DC 5V/1A(USB)
  • Battery Type:Rechargeable Lead-acid Battery
  • Battery Capacity:24/100Ah
  • Size:600mm*415mm*440mm
  • Weight:81Kg
